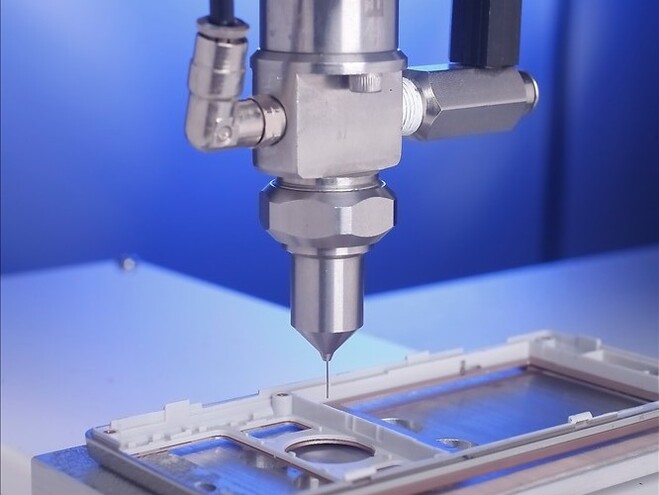

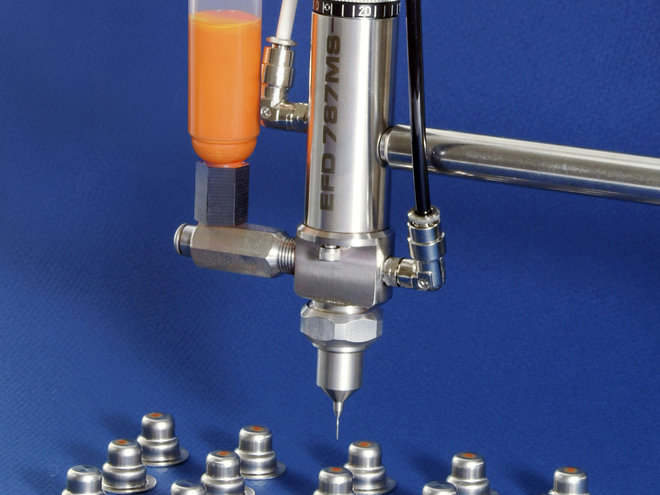

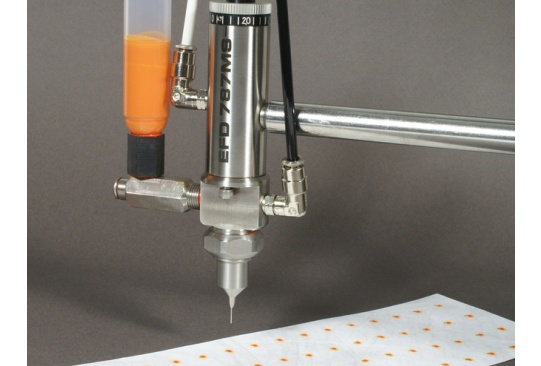

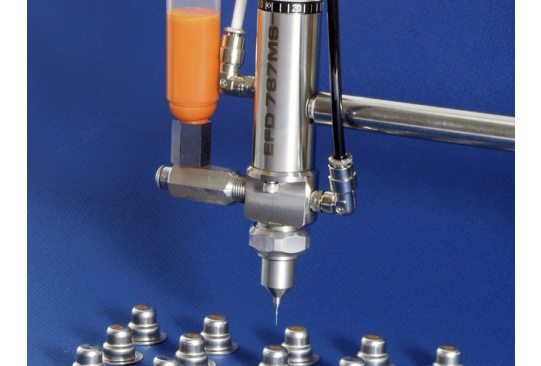

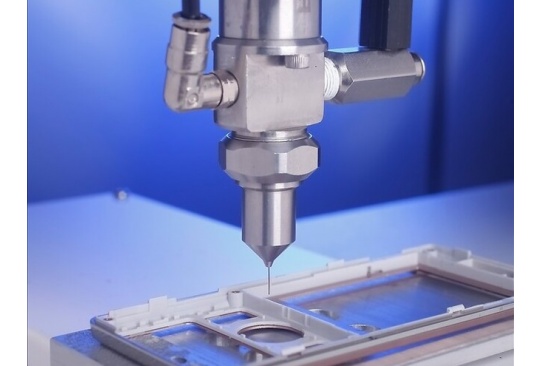

Using Low Volume Low Pressure (LVLP) technology it produces spray patterns as small as 3.3 mm (0.13”) and as great as 19 mm (0.75”) in diameter. A small gauge, 0.3 mm (0.013”) to 0.1 mm (0.004”), dispense tip replaces the standard spray nozzle, concentrating the LVLP air used to atomize coatings into smaller spray patterns.

The 787MS-SS increases throughput and allows greater process control, while reducing production costs and rejects. The valve needle seats in the hub of the dispensing tip, virtually eliminating dead fluid volume between shots.

Also available, the 781Mini™ Series spray valve delivers extremely uniform spray patterns as narrow as 1 mm (0.04”) wide in a 60% smaller form factor for the most exacting application requirements.

Features

• High transfer efficiency
• No overspray or mist
• Consistent spray pattern
• Faster throughput
• Cycle rate exceeds 400 cycles per minute

Compatible Fluids

• Activators
• Coatings
• Inks
• Liquid fluxes
• Oils
• Silicones
• Solvents

Controller

• ValveMate 7100

Single-valve controller designed for semi-automated or fully automated dispensing applications, and features an internal control air solenoid.

• ValveMate 8000

Multi-valve controller capable of operating up to four dispense valves independently or simultaneously, and features external control air solenoids.

• ValveMate 9000

Dual-valve controller supports two independent channels that can drive remote high-speed solenoid valves and incorporates a heating system with spike-and-hold functionality.
